Diodes Introduces Space-Saving Schottky Rectifiers in Ultra-Compact Chip Scale Packages

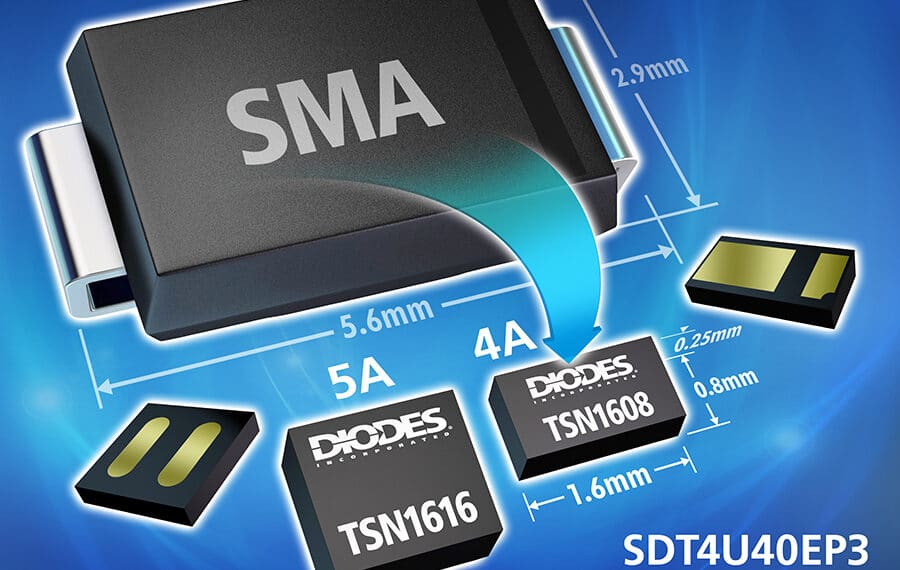

DIO1024_image_SDT4U40EP3_SDM4A40EP3_SDM5U45EP3

Diodes Incorporated (Nasdaq: DIOD) launches a series of high-current Schottky rectifiers in ultra-compact chip scale packages (CSPs). The DIODES SDM5U45EP3 (5A, 45V), DIODES SDM4A40EP3 (4A, 40V), and DIODES SDT4U40EP3 (4A, 40V) achieve the industry’s highest current densities in their class. This helps address market demands for smaller and more powerful electronic systems.



All the three devices can be employed for various purposes, serving as blocking or reverse-polarity protection diodes, electrical over-stress protection diodes, and free-wheeling diodes. The rectifiers in this series are designed for use in space-constrained applications – such as portable, mobile, and wearable devices, as well as IoT hardware.



The SDT4U40EP3 is the industry’s smallest 4A trench Schottky rectifier, being the first ever in a 1608 package. It takes 90% less PCB area than competing devices. Its 800A/cm2 current density, also the highest for a trench Schottky in the industry, is due to its patent-pending innovative cathode design and manufacturing processes. The resulting ultra-low forward voltage performance (0.47V typical) minimizes power losses, enabling the design of higher efficiency systems. Furthermore, its superior avalanche capability makes it robust enough to deal with extreme operating conditions, including transient voltages.



The X3-TSN1616-2 packaged SDM5U45EP3 has a 2mm2 footprint, while the 1.28mm2 footprint of the X3-TSN1608-2 packaged SDM4A40EP3 and SDT4U40EP3 enable system designers to maximize board real estate in modern, highly integrated consumer products. These ultra-thin CSPs, with their 0.25mm (typical) profiles, have shortened thermal paths – resulting in greater power dissipation, reducing thermal BOM costs and increasing reliability.
